Nylon Mesh Single Seam Tube By Ultrasonic Welding For Flow Milling

Nylon Mesh Single Seam Tube By Ultrasonic Welding For Milling

Share Filters not only manufactures and supplies the woven filter meshes in rolls, but also has the capability to convert these filter mesh to be various of ribbons, shapes, tubes. After cold, heat or ultrosonic slitting, the mesh ribbons can be cut and welded to mesh tubes.

Some filter products will need to take more complex forms and will require a specialist in the industry to achieve the best results, the welded tube make the insert injection molding easier. Share filter mesh tubes are used in a variety of industries, such as: automotive filters, appliance filters, healthcare filters, agriculture, university lab.

Filter Mesh Options

	Product Name	Mesh tube
	Color	White, Yellow and other colour
	Material	Nylon mesh, polyester mesh, PP mesh
	Certificate	SGS
	Weave type	Plain Woven
	Mesh Opening	16-2000μm
	Tute inner diameter	Custom specific
	Roll length	custom spe length
	Mesh Count	13mesh~510 Mesh/inch)
	Samples supply	5-10pcs free sample

Filter mesh having thread diameters < 250 µm and mesh openings < 500 µm can be ultrasonically welded.

Filter mesh with thread diameters < 250 µm and mesh openings < 500 µm can be heat slit.

Filter Mesh Tubes Types

Tube with only one functional seam
	Hot and ultrasonic cutting technologies, the tubes are equipped with one or two functional seams, which provide the necessary seam strength, usually used for injection molding
Tube with double seams
	Dual-layer slit tubes have two edges on the side of the tube, heat slitting and ultrasonic slitting
Tube with one overlapping ultrasonic welding seam
	Ultrasonic welded tubes have one overlapping weld and like in the ultrasonic slitter, filter mesh having thread diameters < 250 µm and mesh openings < 500 µm can be ultrasonically welded
Continous Tube Rolls
	Tube rolls are packed into PE bags that are closed by welding, the custom can cut to any length
Precut to length
	Cut to custom length

About Share Filters

Share has over 20 years of experience developing and manufacturing filter mesh and custom product solutions for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.

Factory Capabilities

Filter mesh woven, Mesh Slitting, Cutting Shape, Welding, Sewing, Injection molding.

Share Filters Products Applications

Automotive	Appliance	Medical	Food & Beverage		Environmental

Contact us
Please connect with us so we can learn more about your application and design specifications!

Nylon Filter Mesh Datasheet

Flow Milling Nylon Filter Mesh

Ultrasonic Welding Nylon Mesh Tube

Nylon Mesh Single Seam Tube

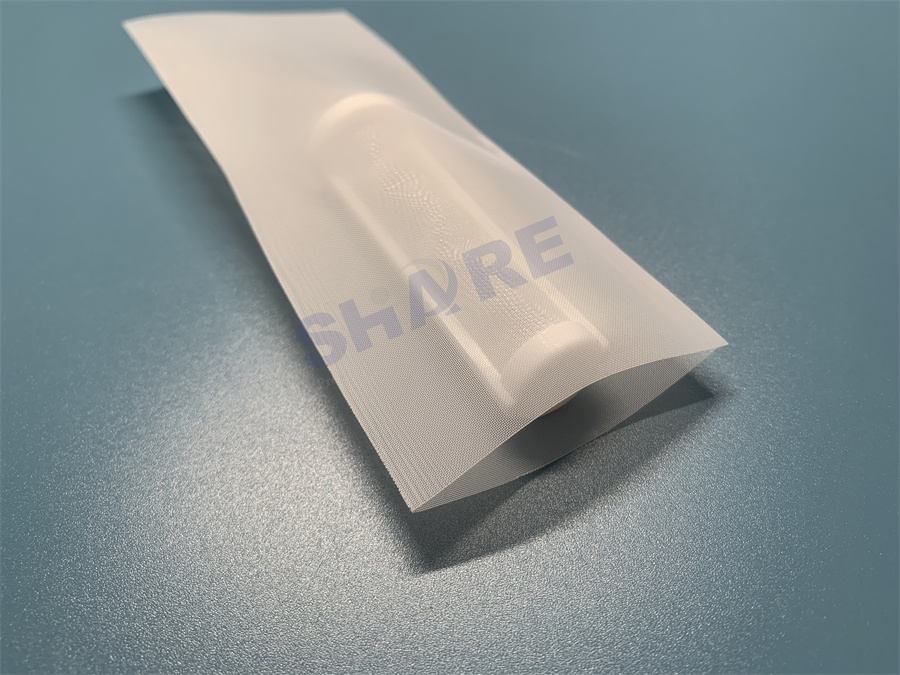

Nylon Mesh Single Seam Tube By Ultrasonic Welding For Flow Milling Images
